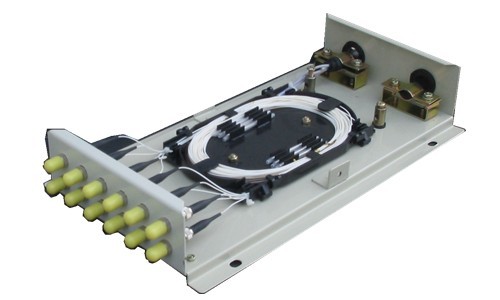

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size

Name: 12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
Brand: UNIFIBER
Price: 1 USD

China 12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size wholesale

Brand Name : UNIFIBER

Certification : ROHS

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : Carton box

Material : Cold rolled steel sheet

Application : Indoor wall mounted

Max capacity : 48 ports

Connector : SC,FC,LC,ST

Contact Now

GPZ/48A series can be applied in the straight through or branch connection of indoor cable;Available for the distribution and terminal connection of various kinds of optional fiber system;fit for wall mounted.

Application
Fiber Optic Communication System

FTTH Project
LAN Terminal
CATV

Features
1~48 adapters available
Reliable Cable fixing, Ground protection devices
Suitable for 1~48pcs ST, SC, FC, LC adapters
Upper and lower plate structure makes installing easily. Wall mount installation

Type	Size(mm) WDH	Max capacity	Cable ports	Outer carton dimension	Outer cartion weight
GPZ/48A-12	18333070	12	2 in,12 out	430370470/10pcs	20
GPZ/48A-24	183330100	24	2 in, 24 out	430370470/8pcs	18
GPZ/48A-48	220330100	48	2 in, 48 out	430600510/8pcs	20
GPZ/S-8	13228546	8	2 in, 8 out	630330340/20pcs	11.5
GPZ/S-12	13228546	12	2 in, 12 out	630330340/20pcs	11.5
GPZ-WL-8	14026040	8	2 in, 8 out	630330340/20pcs	21
GPZ-WLA-8	11522045	8	2 in, 8 out	550520320/40pcs	21.6

Type	Size(mm) WDH	Max Capacity	Outer carton diameter	Outer carton weight
GPZ/WLB-JY-CQ12	9015330	12	500330200/50pcs	16.5
GPZ/WLA-JY-CQ12	11517535	12	670410280/50pcs	21.3
GPZ/WLA-CQ12	11022040	12	550520320/40pcs	21.6
GPZ/G	12030046	24	630330340/20pcs	22.5
GPZ/48A	18333070	48	430370470/10pcs	20

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
